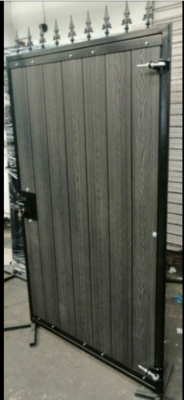

HKS111, Pedestrian Composite Gate with Railheads

GATE IS MADE OF 30MM X 30MM BOX SECTION AND 20 MM thick COMPOSITE INFILL PANELS.

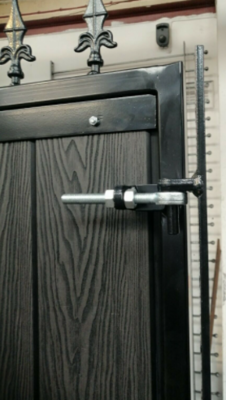

Gate comes with everything hinge bar (30mm x 8mm Flat bar with 12mm holes) locking post (30mm x30mm fixing post with 8mm holes) you only need your fixing screws and fixing bolts to fixing them to Pillars walls or posts.

Hanging bar has 12mm diameter holes for fixing and locking post has 8mm diameter holes the front holes on locking bar is 16mm so the screw head sink in the locking post.

1930mm with Railheads and 1800MM without railheads

PLEASE SELECT THE GATE SIZE FROM ABOVE DROP DOWN MENU ABOVE SIZES ARE FOR GATE TO FIT INCLUDING HINGES BAR AND LOCKING POST. WE ALSO DO CUSTOM SIZES

FINISH

Metal frame is semi black powder coated

Polite Note: All Gates are Made after sales Due to the Size and Nature of Product we will please advise not to commit to buy if you are going to cancel as It takes a long while to sell the same size of Gate and we have limited storage facility.
Delivery in 10 to 15 Working days from the date of clear payment, Delivery charge is for UK mainland only for other areas please contact us.
